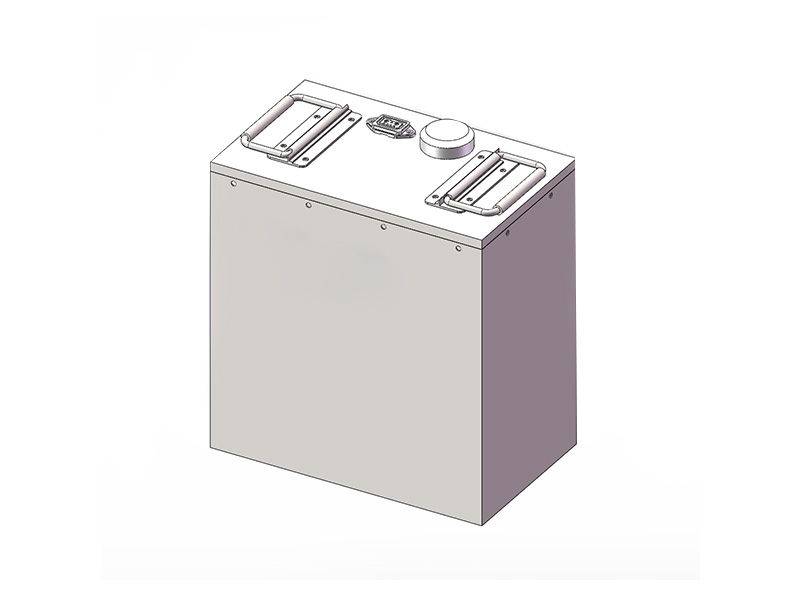

51Ah17S

• Continuous discharge current: Supports a continuous discharge of 50A, meeting the instantaneous power requirements in high-load scenarios such as vehicle acceleration and climbing slopes.
• Maximum pulse discharge current: Up to 80A, capable of handling sudden load changes (such as emergency obstacle avoidance and rapid acceleration), ensuring the stability of power output.

Get a Free Quote Download

Product Detail

Serial Number	Items	Parameters	Remark
1	Nominal Capacity	51Ah
2	Nominal voltage	62.39 V
3	Electric quantity	3181.8 Wh
4	Charging cut-off voltage	73.1 V
5	Discharge cut-off voltage	42.5 V
6	Standard charging current	17A
7	Maximum charging current	30A
8	Continuous discharge current	50A
9	Maximum pulse discharge current	80A
10	Charge operating temperature	0 ~ 45 ℃
11	Discharge operating temperature	- 20 ~ 55 ℃
12	Balanced line interface	2+6 female seats
13	Charge and discharge interface	A triangular male seat
14	BMS requirements	Software protection board
15	Shell	Aluminum alloy box body
16	Other special requirements	no
17	Dimension	310×195×175±2mm	Height * Width * thickness
18	Weight	18kg
Note: The above technical indicators correspond to individual battery packs of this specification. It is strictly prohibited to use battery packs of this specification in series or parallel externally without authorization.
